DN15 10K JIS Standard Cast Iron Flanged End Soft Seal 2 pc Ball Valve
Specifications
1. Design and Manufacture: JIS B2031
2. Face to Face : JIS B2002

DN15 10K JIS Standard Cast Iron Flanged End Soft Seal 2 pc  Ball Valve





Main Parameter Specifications

1. Design and Manufacture: JIS B2031

2. Face to Face                : JIS B2002

                                         DN15-DN100(6)

                                         DN125-DN200(39)

3. End Flange Dimensions : JIS B2212

4. Nominal Pressure           : 10K

5. Pressure test                 : JIS B2003

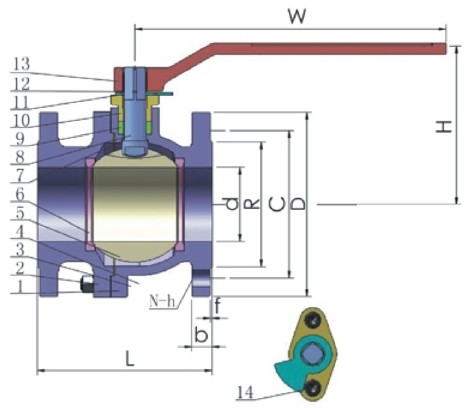

Main parts and materials

No.Part Name              Material
1Body      Cast Iron (FC200/FCD-S)

2

Bonnet      Cast Iron ( FC200/FCD-S )
3Nut      Carbon steel
4Bolting      Carbon steel
5Ball      Stainless steel(SS304/SS316)
6Seat      PTFE/RPTFE/TFM1600
7Gasket      PTFE
8Stem      Stainless steel(SS304/SS316)
9Stem packing      PTFE
10Gland flange      Cast Iron (FC200)
11Stop collar      Carbon steel
12Circlip      Steel
13Lever      Ductile iron (FCD450)
14Gland boltl      Carbon steel
